The History Of Kawasaki’s KDX175 & KDX200 Models 1980-2006

The History Of Kawasaki’s KDX175 & KDX200 Models 1980-2006 – The Motocross Vault

The Kawasaki KDX175 and KDX200 were Kawasaki’s 175cc and 200cc two-stroke enduro bikes, sold from 1980 through 2006. The KDX175 started it in 1980 with Uni-Trak linkage suspension, and the KDX200 took over in 1983. It added the KIPS power valve in 1986, liquid cooling in 1989 and a perimeter frame in 1995, then stayed in the lineup almost unchanged until 2006. To me it’s still one of the best fun-per-dollar trail bikes ever built. Below is the full story, my video history, a year-by-year table, and what to check before you buy one.

This is a rundown of Kawasaki’s KDX175 and KDX200 Enduro models from their introduction in 1980, until their retirement in 2006.

Shopping for a Kawasaki KDX175 or KDX200? Send Tony the listing before you buy. He checks the year, the parts and the price within 48 hours. Bike Check from $29 →

  Kawasaki KDX175 and KDX200 1980-2006 full PDF   1980 Kawasaki KDX175 - Cycle World Photo 1980 Kawasaki KDX175  Photo Credit: Cycle World   Originally introduced for the 1980 season,  the first KDX175 was Kawasaki’s answer to Suzuki’s hugely successful PE175. Using a frame and motor derived from their KX125 motocrosser, the new KDX175 offered 24 hp (claimed) and a smooth delivery. Because it shared much of its architecture with the all-new KX125, it also received Kawasaki’s new single-shock suspension system. Dubbed the Uni-Trak, this system differed from Yamaha’s mono-shock layout by placing its single large damper in an upright position and attaching it to the swingarm via a bell-crank linkage. In 1980, this was very advanced stuff and none of the KDX’s competitors (including its own 250 and 400cc KDX stablemates) offered anything like it.   1983 Kawasaki KDX200 1983 Kawasaki KDX200  Photo Credit: Dirt Bike   After two years of minimal changes, it was time for a complete redesign in 1983. An all-new motor, chassis, and bodywork lowered weight, improved ergonomics and increased performance. The new motor boosted torque by increasing overall displacement 25cc and redesigned suspension improved handling by increasing overall travel 10mm front and rear. Because of the bump up to 198cc, the new KDX adopted a new name, one it would keep for the next twenty-three years – the KDX200.   1988 Willy Simons on the Kawasaki KDX200 - Karel Kramer Photo 1988 Kawasaki KDX200   Photo Credit: Dirt Rider After a further two years of minor upgrades, it was time for another major revamp in 1986. Once again leveraging technology from their motocross department, the ’86 KDX featured a KX125-inspired chassis, bolted to an air-cooled 198cc motor. While the displacement remained the same, the rest of the motor was new and featured Kawasaki’s innovative KIPS (Kawasaki Integrated Power-valve System) for the first time. Once again developed by the motocross department, the KIPS combined the resonance chamber of Honda’s ATAC with the variable exhaust port of Yamaha YPVS into one comprehensive design. By using this system, Kawasaki was able to tune the KDX for both strong low-end and high-revving power. In addition to the new motor and chassis, the ’86 KDX received redesigned bodywork, beefed-up forks (43mm) and a front disc binder for the first time.     1989 Kawasaki KDX200 1989 Kawasaki KDX200  Photo Credit: Dirt Bike The 1989 season would see the KDX200 receive its next major redesign. As before, the KDX borrowed liberally from the KX125 and featured a chassis patterned after the ’88 KX125. The new frame featured a redesigned “bottom-link” Uni-Trak design with increased travel and a lower center of gravity for improved handling. Travel was also increased up-front, with the new 43mm non-cartridge dampers offering 3/4 of an inch more movement than 1988. In addition to the new chassis, a redesigned KX125-based motor boosted power by adding liquid cooling and adopting Kawasaki’s latest triple-valve KIPS design. With all-new bodywork and the addition of a rear disc, about the only thing that was not improved for 1989 was the KDX’s weight, which increased five-pounds over 1988.   1994 Kawasaki KDX200 - Dirt Bike Photo 1994 Kawasaki KDX200  Photo Credit: Dirt Bike   In 1993, the KDX finally received a suspension upgrade to cartridge internals and a switch to an inverted design. While an improvement in performance, they remained too soft for anything above a trail pace and a far cry from the ones found on the KX125.   1995 Kawasaki KDX200 - Dirt Bike Photo 1995 Kawasaki KDX200  Photo Credit: Dirt Bike   The 1995 season would see the KDX200 receive its last major redesign.  Once again a clean-sheet upgrade, the new bike adopted the perimeter frame design the KX125 had been using since 1990. This increased rigidity and improved handling over previous KDX designs. A new 198cc motor kept the liquid cooling and upped the power with a redesigned KIPS, new crank and revised porting. Perhaps most interesting of all, was Kawasaki’s decision to ditch the inverted forks of ’93-’94 in favor of a set of 43mm conventional cartridge units.   2006 Kawasaki KDX200 Last of the Mohicans: The 2006 Kawasaki KDX200     Photo Credit: Kawasaki  After 1995, the KDX would only receive cosmetic updates. In 1997, Kawasaki would add a 220 version to the lineup with a larger bore and smaller carb. Designed to do battle in the 250 class, the KDX220R proved different, but not necessarily better than the 200. In 2006, the KDX would finally be retired for good, the victim of concerns over more stringent emissions requirements.

Kawasaki KDX175 and KDX200 year-by-year at a glance

YearKey change
1980KDX175 debuts: air-cooled engine and chassis based on the KX125, Uni-Trak linkage single shock, claimed 24 hp.
1981New piston, pipe and jetting for more mid-range; air caps added to the forks.
1982Last KDX175: 34mm Mikuni, frame gussets, larger silencer.

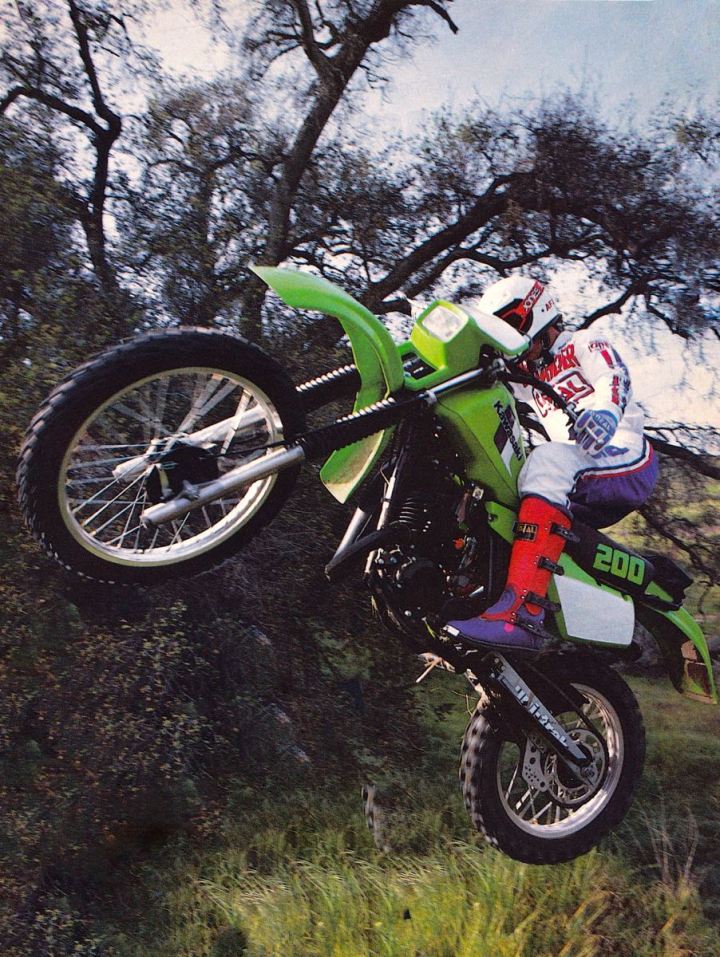

1983KDX200 (198cc): new engine and chassis, aluminum swingarm, single dog-bone Uni-Trak, quick-detach rear wheel, enduro trip computer.
1984Cylinder clearances revised to cure seizures, 3.2-gallon tank, straight-pull rear spokes, red color option.
1985Blue seat, new 34mm carb and exhaust.
1986All-new bike: KIPS power valve (still air-cooled), 43mm forks (up from 38mm), first front disc, damping-adjustable shock.
1987Detail changes: rounded seat edges, coated KIPS actuator, revised handguards, thinner swingarm material.

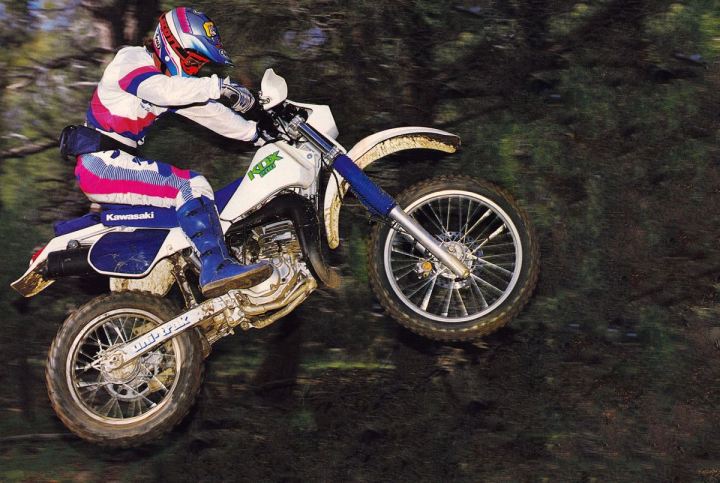

1988New carb and intake ducts, silver engine, polar white option.

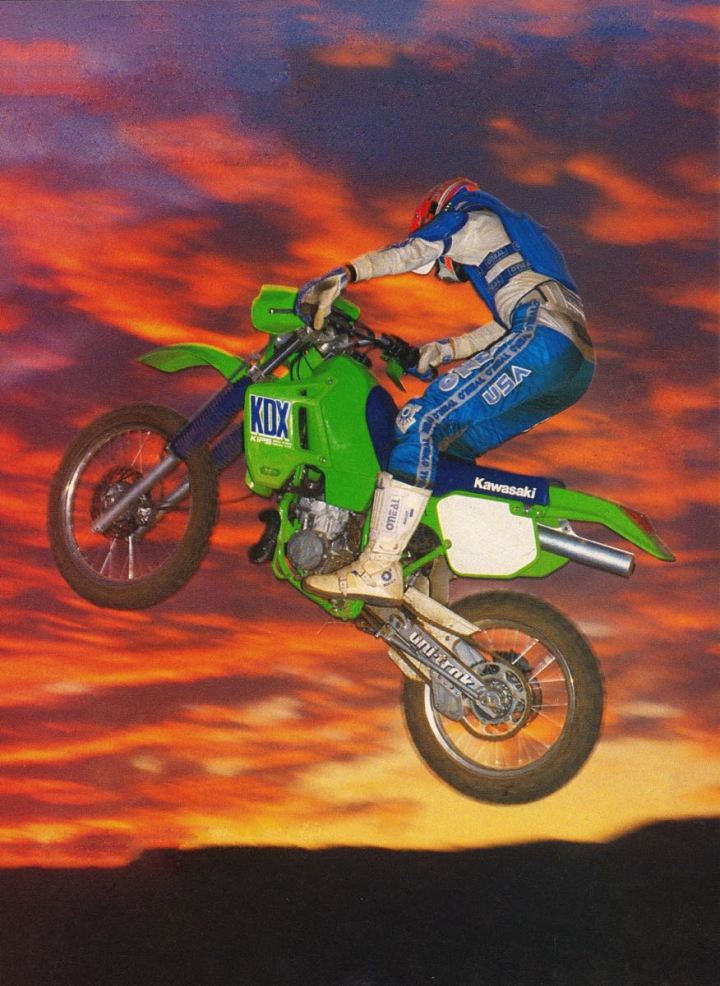

1989Liquid cooling, three-valve KIPS, dual radiators, frame based on the ’87 KX125 with bottom-link Uni-Trak, rear disc brake.
1990Stronger piston, firmer seat foam, white option returns.
1991–1992Graphics only. The bigger KDX250 joined the lineup in 1991.
199341mm inverted cartridge forks.

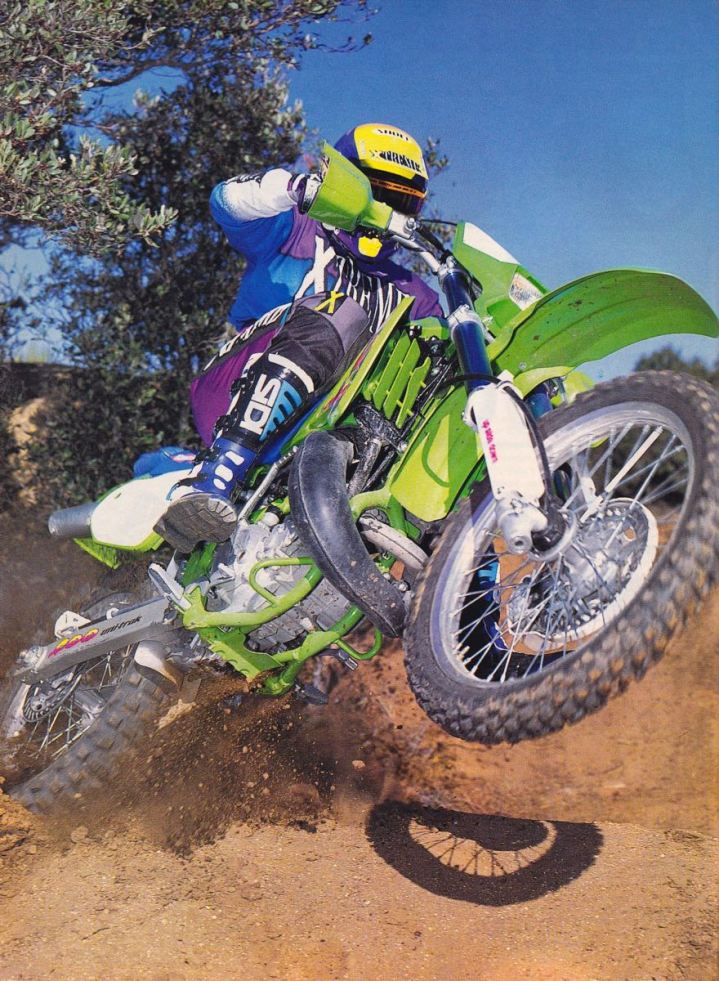

1994Graphics only; last year of the 1989-style bodywork.

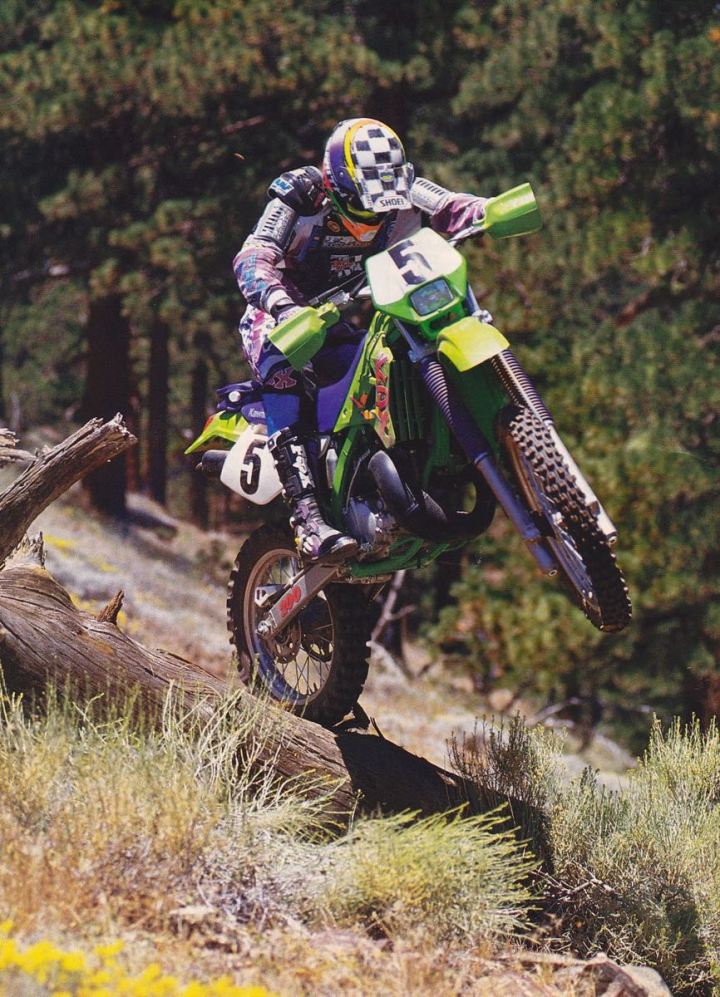

1995Last major redesign: perimeter frame, new engine and power valve, conventional cartridge forks again, smaller tank.
1996Purple bodywork to match the KX line.
1997KDX220R added alongside the 200: 3mm bigger bore, 2mm smaller carb, about $250 more. The 200 gets a clutch update.
1998–2005Graphics changes only.

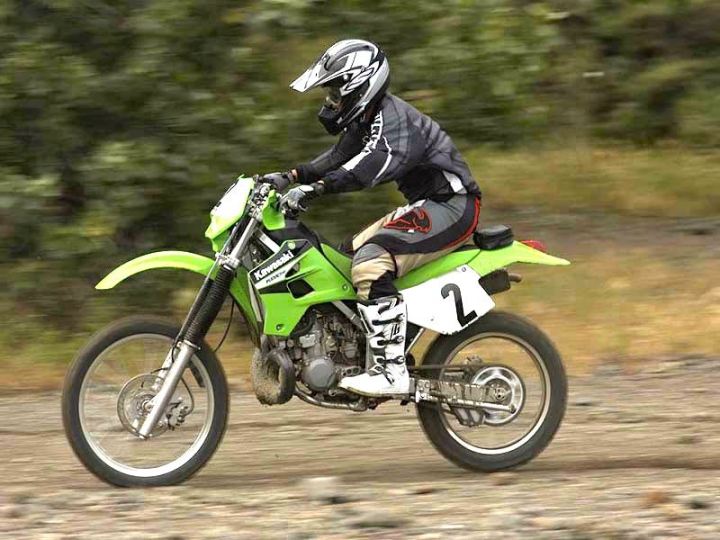

2006Final year for the KDX200 and KDX220R.

Identify the year: how to tell KDX200s apart

On 1981 and later bikes, the 10th character of the 17-digit frame number is the model year (B is 1981, L is 1990, T is 1996, 6 is 2006). Then check that the hardware matches:

  • Air-cooled with a front drum: 1980–1985. A KDX175 is 1980–1982, and a 198cc KDX200 is 1983–1985.
  • Air-cooled with a front disc and KIPS: 1986–1988.
  • Liquid-cooled with conventional forks and the steel KX-style frame: 1989–1992.
  • Upside-down forks (blue anodized): 1993–1994 only.
  • Perimeter frame and conventional forks: 1995–2006. Purple bodywork points to 1996.
  • Colors: 1984 had a red option, 1985 brought the blue seat, and white was offered in 1988 and 1990.

Buying a used Kawasaki KDX200 today

I owned a 2001 KDX200. It was slow next to my KTM 200 or any 125, but it was a blast and needed almost no maintenance. KDXs are tough, but here’s what I’d look at:

  • Cylinder: the Electrofusion cylinders can’t be bored oversize. If the engine has been trashed, you’re shopping for a new cylinder.
  • 1983: early bikes had tight piston clearances and could seize. Kawasaki fixed it for 1984.
  • KIPS (1986 on): Kawasaki added a coating to the KIPS actuator for 1987 to stop it sticking. On any KIPS bike, make sure the power valve moves freely.
  • Liquid-cooled bikes (1989 on): there’s no fan, so check the radiators for dents and leaks and look for signs it has been overheated.
  • Suspension: stock KDX suspension is soft for anything faster than a trail pace. Springs and a revalve are money well spent.
  • KDX220R: it makes more torque but isn’t faster than the 200 stock, so don’t pay a big premium for the badge.

Kawasaki KDX200 FAQ

What year did the KDX200 become water-cooled?

1989. That was also the first year for the three-valve KIPS and the rear disc brake. Every KDX200 from 1983 to 1988 is air-cooled.

Did the KDX200 have upside-down forks?

Only in 1993 and 1994, when it ran 41mm inverted cartridge forks. Kawasaki went back to conventional forks with the 1995 redesign.

What’s the difference between the KDX200 and the KDX220R?

The KDX220R, sold from 1997 to 2006, has a 3mm bigger bore and a 2mm smaller carb. That gives it more torque, but it isn’t faster than the 200.

When did Kawasaki stop making the KDX200?

2006 was the last year for both the KDX200 and the KDX220R. They were still selling well, but Kawasaki expected tougher two-stroke emissions rules and stopped investing in them.
